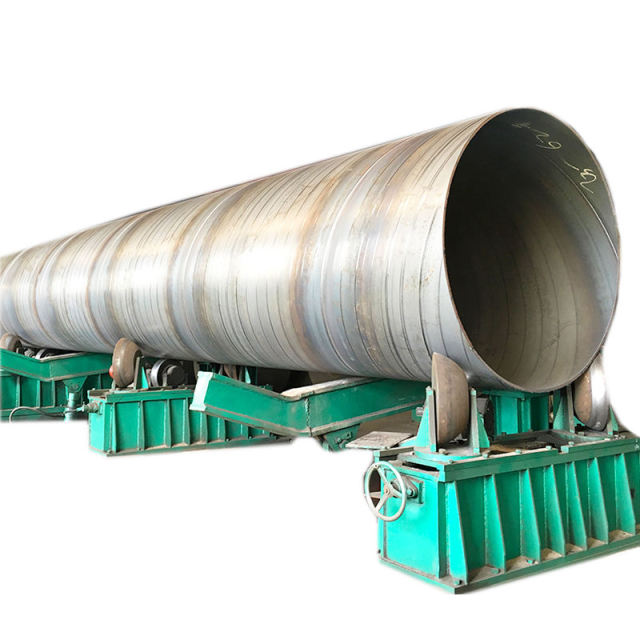

Spiral Welded Steel Pipe

Spiral welded pipe is a type of steel pipe made by continuously spiral forming of steel strip and submerged arc welding. It features uniform stress distribution, high strength, and a wide range of specifications, and is widely used in fields such as oil and gas transportation, water supply and drainage, and structural engineering.

GET A QUOTE

Description

Spiral Welded Steel Pipe

Execution Standards:
GB/T9711-2013 Steel Pipes for Pipeline Transportation Systems in the Oil and Gas Industry
API Spec 5L Pipeline Steel Pipe Specification (45th Edition)
SY/T5037-2012 Spiral Submerged Arc Welded Steel Pipes for Low-Pressure Fluid Transportation
GB/T3091-2025 Welded Steel Pipes for Low-Pressure Fluid Transportation
Scope of Application:
Steel pipes for transporting water, gas, and oil in the oil and gas industry
Steel Grade:
Q195、Q215、Q235B、Q345B、Q345C、Q345D、L245、 L290、L320、L360、L390、L415、L450、L485、L555、B、X42、X46、X52、X56、X60、 X65、X70、X80、X90、X100、X120、L245M、L290M、L320M、L360M、L390M、L415M、L450M、L485M、L555M、 L625M、L690M、L830
Steel pipe welding methods

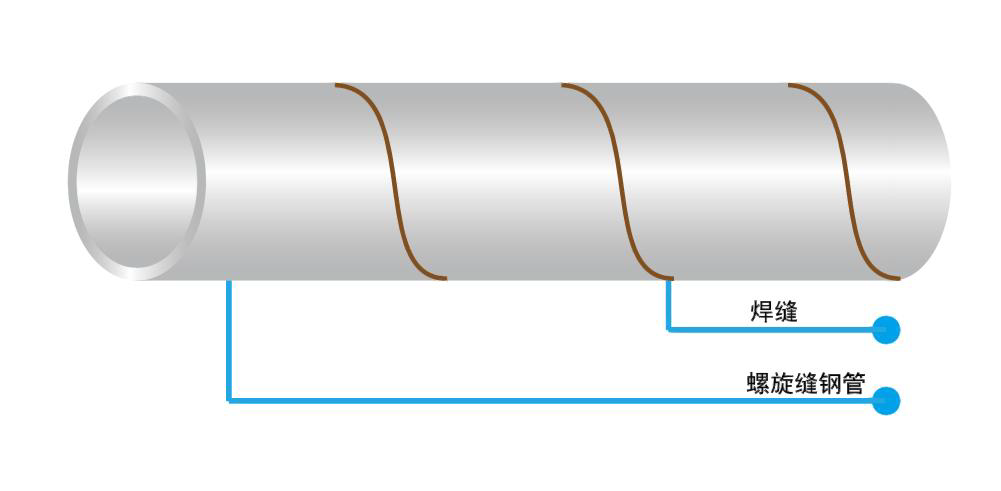

A SAWH：submerged-arc helical welded pipe
B. Product Features: Uses filler wire and flux.
Submerged arc welding process.
The weld is a double-sided spiral shape, both internally and externally.

Main production equipment

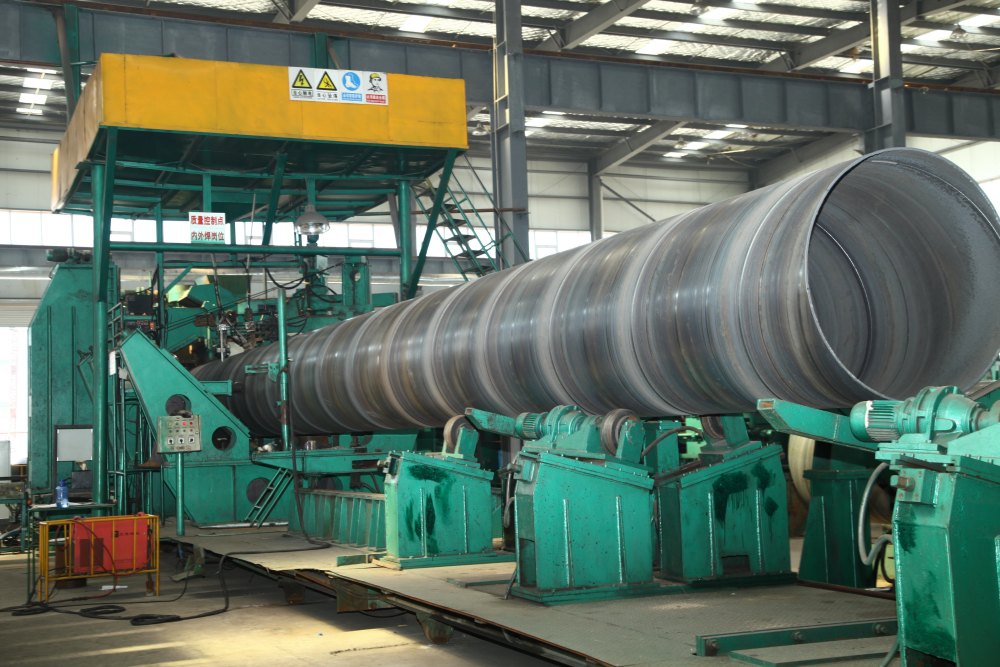

Equipment appearance

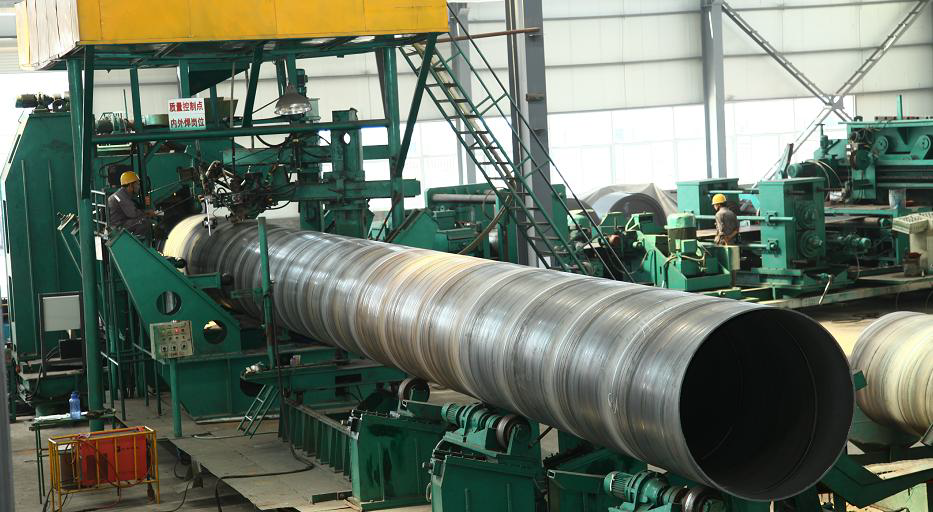

Overall view of the spiral
welded pipe unit

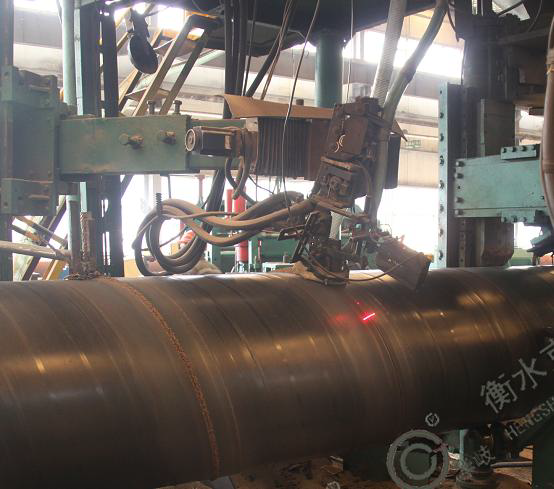

Automatic weld seam tracking system

Production range

DN200 - DN2500mm, with a production thickness of 6mm-20mm.

Equipment Features

Spiral welded pipe unit: Designed and manufactured by Taiyuan Heavy Machinery, it adopts a three-roll bending plate external clamping forming method. This method ensures stable forming, and the external clamping structure guarantees the geometric accuracy of the steel pipe.

• Submerged arc welding: Employs an automatic internal and external weld seam tracking system to achieve automatic real-time adjustment of weld seam offset, ensuring weld quality.

• All welding machines are Lincoln Electric welding machines from the USA, with stable heat input, capable of dual-wire welding for both internal and external welds, and undertaking the production technology of medium and thick-walled pipes.

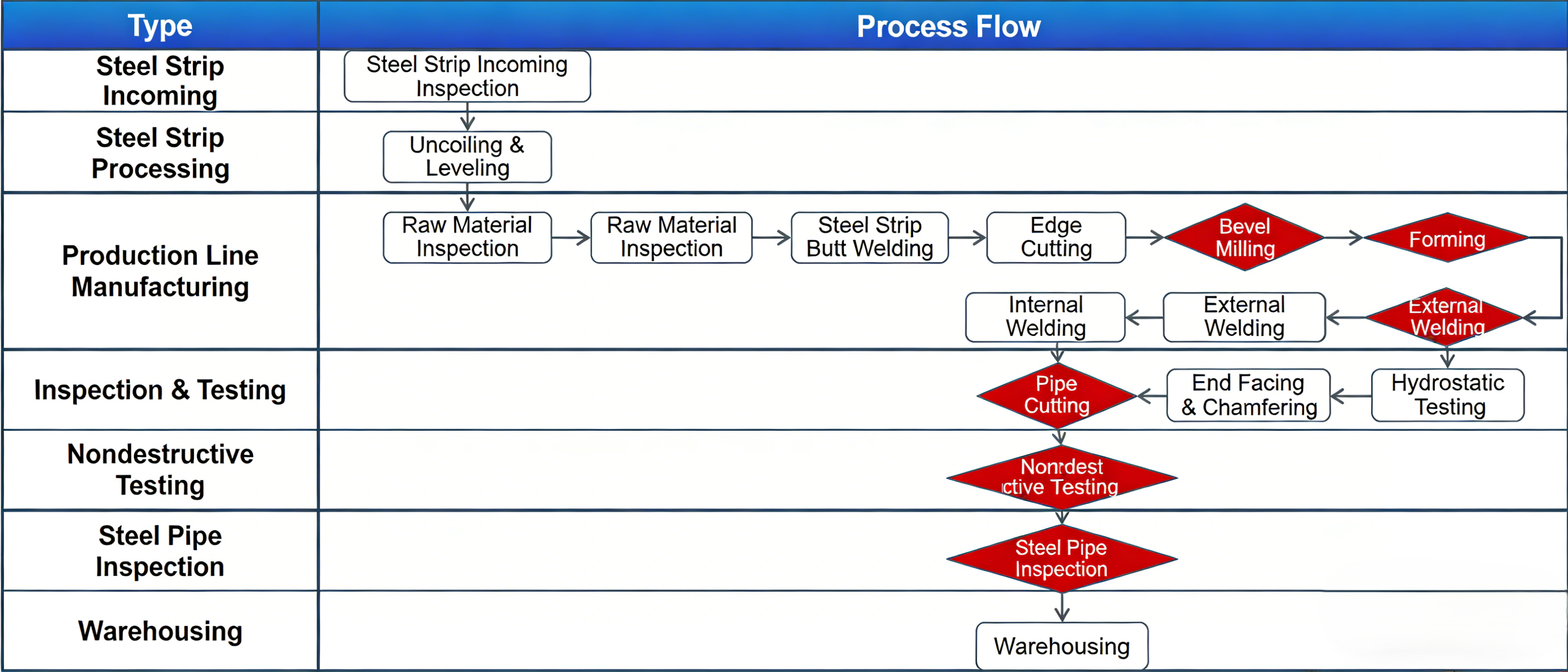

Spiral welded pipe production process

Spiral welded pipe production control

Quality Control Table (Translated)

Control Point	Control Item	Inspection Frequency
Raw Material Inspection	Verify steel mill quality certificate	Each batch
	Identification, appearance, dimensions	Once per heat/batch
	Chemical composition, mechanical properties	Once per heat/batch
Incoming Inspection	Check appearance, width, thickness, material	Each batch
Strip Butt Welding	Complete strip end welding per process card	Each batch
Forming Inspection	Measure spiral pipe diameter during forming	Real-time, each piece
Submerged Arc Welding	Welding parameters meet process requirements (wire match, current, voltage, travel speed)	Real-time monitoring, each piece
	Weld quality inspection (appearance, OD, surface quality)	Real-time monitoring, each piece
Cutting	Pipe length meets requirements	Real-time monitoring, each piece
Mechanical Property Test	Tensile test, metallography, CVN impact test, bend test, DWTT, etc.	Once per heat/batch
Radiographic Testing	Inspect internal weld defects	Each pipe
Ultrasonic Testing	Inspect internal weld defects	Each pipe
End Facing / Beveling	Pipe ends meet standard bevel requirements	Each pipe
Hydrostatic Testing	Check for leakage	Each pipe
Finished Product Inspection	Geometric dimensions	Each pipe
	Appearance and surface quality	Each pipe
	Mechanical & process properties, NDT	Verification
Marking	Pipe identification marking	Each pipe
