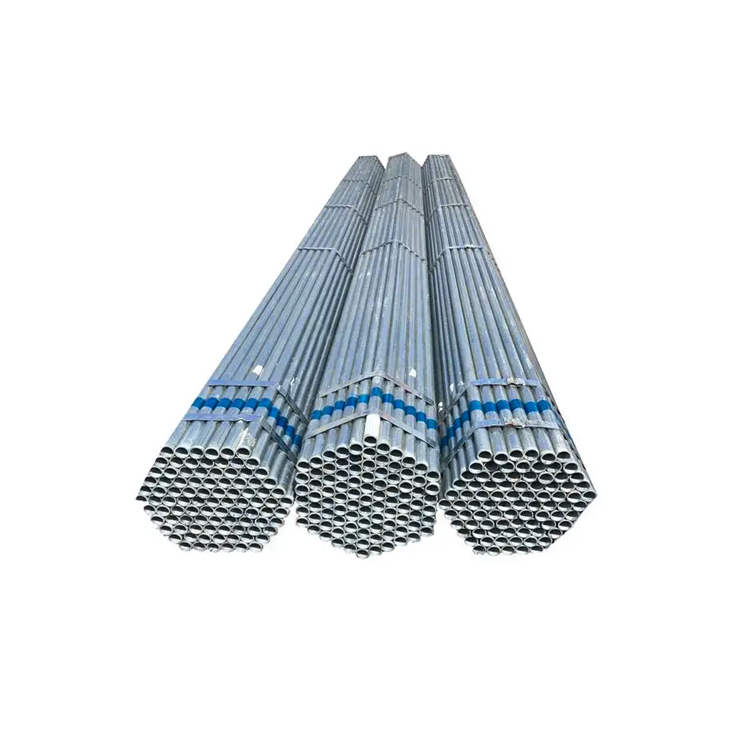

Premium Hot-dip Galvanized Steel Pipe
for Gas (300g/㎡) |
Premium Hot-dip Galvanized Steel Pipe
for Gas (500g/㎡) |

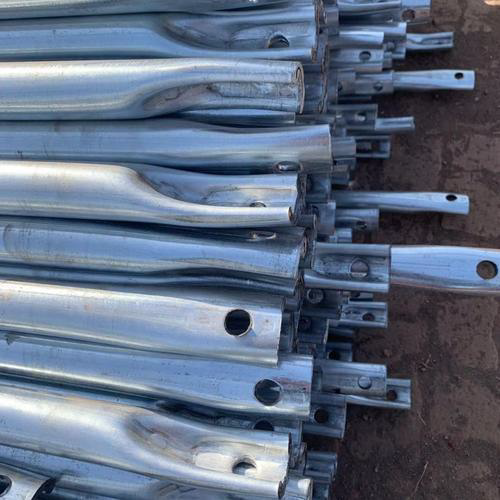

Diagonal Tie Rod |
Pipeline, conduit, fire-fighting pipe |
Hot-dip Straight Seam Pipe |
Thickened pipe, thin-walled pipe |
Hot-dip galvanized steel pipe - Gas-specific hot-dip galvanized steel pipe
Execution Standard: Welded Steel Pipes for Low-Pressure Fluid Transportation GB/T3091-2025
Application Scope: Mainly used for conveying flammable gases such as coal gas and natural gas, as well as other general pressure fluids.
Steel Grades: Q195, Q215, Q235, Q345, 10#, 20#, 35#
Product Introduction: "Jinghua" brand hot-dip galvanized steel pipes for gas applications are currently a qualified supplier for gas companies such as China National Petroleum Corporation (CNPC), China Petroleum & Chemical Corporation (Sinopec), China Gas Holdings Limited (GCC), ENN Energy Holdings Limited, China Resources Gas Holdings Limited, Kunlun Gas Holdings Limited, and CNPC Zhongtai Gas Holdings Limited.
Product performance fully complies with and exceeds current national standards. The raw materials are high-quality carbon structural steel coils, produced through longitudinal shearing. The average zinc coating weight of the galvanized pipe is ≥500 grams per square meter. Before leaving the factory, the products undergo 100% water pressure testing for tightness, 100% mechanical and chemical testing, 100% process performance testing, and 100% UT non-destructive testing.
Standardization of galvanizing process
- Key galvanizing process data is collected in real-time and displayed on a large screen in the control room using data acquisition instruments such as pressure sensors,temperature sensors, pH probes, and flow meters. Different products have corresponding production parameter menus, and alarms are triggered when parameters exceed standard ranges. Process data, equipment operating status, and energy consumption of finished products from all production lines can be displayed on the dashboard, enabling visualized management of production operations.
Test
Zinc coating weight test |
Zinc coating adhesion test
|
Zinc coating uniformity test |
Finished Product Storage
Storage Method: Indoor storage. When stacking, use wooden blocks to separate the bottom from the ground.
Place soft pads between the wooden blocks and the coated pipe to prevent scratches on the galvanized pipe surface. Finished galvanized pipes should be stacked in a cross pattern, neatly arranged, with all product labels facing one end. Different specifications of galvanized pipes must not be mixed in stacks. |
Inspection of Galvanized Steel Pipes Before Shipment
Before leaving the factory, gas pipes are inspected and recorded by designated personnel to ensure compliance with all technical requirements (appearance, zinc coating thickness, packaging, etc.). |
